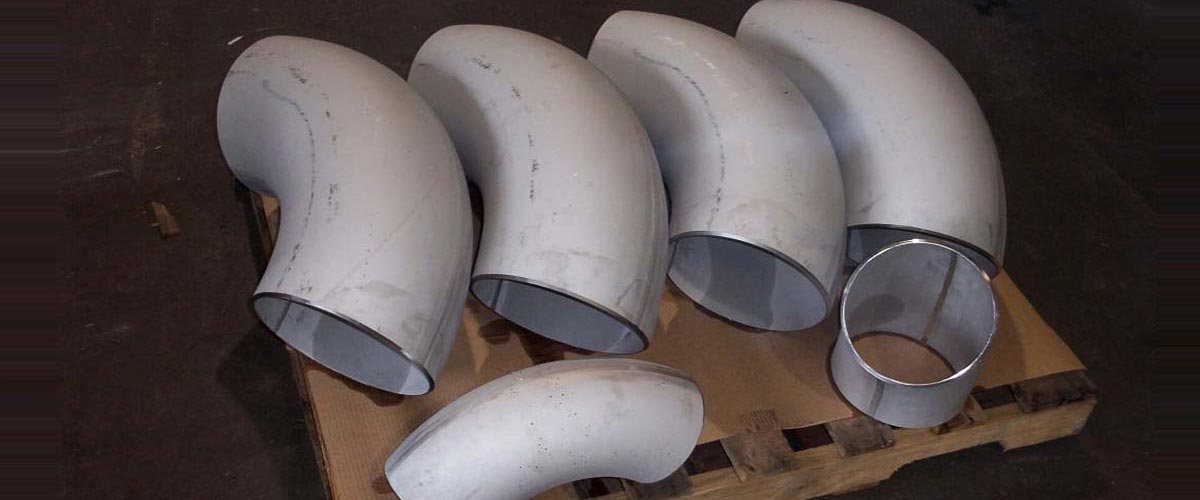

Pipe Fittings Schedule Chart

Nom. Size DN	Pipe OD mm	Wall Thickness (mm)													Nom. Size DN	B	A	K	V	D	E. Sth. Wt. & Ex. Stg.
Nom. Size DN	Pipe OD mm	Sth. Wt.	Sch. 20	Sch. 10	Sch. 30	X Stg.	Sch. 40	Sch. 60	Sch. 100	Sch. 80	Sch. 140	Sch. 120	X.X. Stg.	Sch. 160	Nom. Size DN	B	A	K	V	D	E. Sth. Wt. & Ex. Stg.
20	26.7	2.87	-	-	-	3.91	2.87	-	-	3.91	-	-	7.82	5.56	20	19	38	43	33	19	25.4
15	21.3	2.77	-	-	-	3.73	2.77	-	-	3.73	-	-	7.47	4.78	15	16	38	47.5	—	—	25.4
25	33.4	3.38	-	-	-	4.55	3.38	-	-	4.55	-	-	9.09	6.35	25	22	38	55.5	41	25.4	38.1
40	48.3	3.68	-	-	-	5.08	3.68	-	-	5.08	-	-	10.15	7.14	40	29	57	82.5	62	38	38.1
32	42.2	3.56	-	-	-	4.85	3.56	-	-	4.85	-	-	9.70	6.35	32	25.4	47.5	70	52	32	38.1
50	60.3	3.91	-	-	-	5.54	3.91	-	-	5.54	-	-	11.07	8.74	50	35	76	106	81	51	38.1
80	88.9	5.49	-	-	-	7.62	5.49	-	-	7.62	-	-	15.24	11.13	80	51	114	159	121	76	50.8
65	73.0	5.16	-	-	-	7.01	5.16	-	-	7.01	-	-	14.02	9.53	65	44.5	95	132	100	63.5	38.1
200	219.1	8.18	6.35	-	7.04	12.70	8.18	10.31	15.09	12.70	20.62	18.26	22.23	23.01	200	127	305	414	313	203	102
90	101.6	5.74	-	-	-	8.08	5.74	-	-	8.08	-	-	16.15	-	90	57	133	184	140	89	63.5
125	141.3	6.55	-	-	-	9.53	6.55	-	-	9.53	-	12.70	19.05	15.88	125	79	190	262	197	127	76.2
100	114.3	6.02	-	-	-	8.56	6.02	-	-	8.56	-	11.13	17.12	13.49	100	63.5	152	210	159	102	63.5
150	168.3	7.11	-	-	-	10.97	7.11	-	-	10.97	-	14.27	21.95	18.26	150	95	229	313	237	152	88.9

Elbow

Tee

Reducer

Table of Content

Pipe Fittings Specification
Buttweld Fittings Grades in Stock
Elbow Price
Pipe Fittings Type
ASME B16.9 Fitting HSN Code
Seamless Fittings Size chart
Welded Pipe Fittings Finish
Industrial Steel Pipe Fittings Testing
Manufacturing Capabilities Of Steel Fittings
Application Of Industrial Fittings
Seamless vs Welded Fittings
Buttweld Pipe Fittings Thickness Chart
Concentric Reducer vs Eccentric Reducer
Buttweld Fittings Weight Chart

Pipe Elbow Manufacturing Process
Pipe Tee Size Chart
Long Radius vs Short Radius Elbow
Elbow Dimensions
BW Fitting Manufacturing Standards
Pipe Reducer Size Chart
Pipe Fittings Pressure Rating
Welded Fittings Dimensional Tolerances
Plain End Vs Bevel End Fitting
Pipe Elbow Radius chart
Large Diameter Pipe Fittings Marking
Pipe Fittings Length
Schedule 40 vs Sch 80 Pipe Fitting

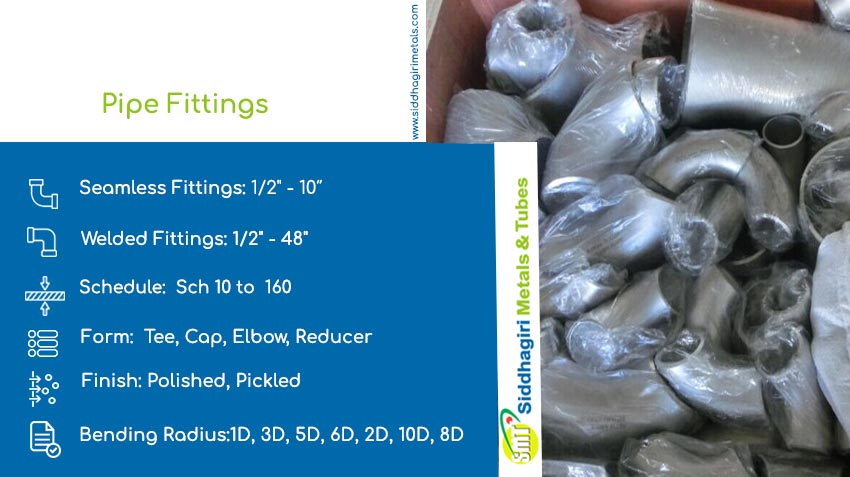

Pipe Fittings Specification

Buttweld Fittings Stock Sizes

Seamless Fittings:1/2" - 10″
Welded Fittings:1/2" - 48"
Schedule :SCH 10 To SCH 160

Welded Steel Fittings Standards

MSS-SP-43
ASME B16.28
ANSI B16.9

Weld Fittings Finish

Polished
Pickled
Mill

Pipe Fittings Method

Seamless
Welded
Fabricated

Elbow Bending Radius

3D
2D
1D, 5D

ASME B16.9 Fitting Origin

Japanese
Indian, Korean
European, American

Seamless Fittings Advantages

Robust and Resilient
Smooth Inner Surfaces
Superior Resistance

Steel Pipe Fittings Testing

Ultrasonic test
HIC tested
PMI

Pipe Elbow Bending Method

Rotary Draw Bending
Ram-Type Bending
Mandrel Bending
Roll Bending

Industrial Steel Pipe Fittings Form

Tee
Cap
Elbow
Reducer

Industrial Fittings Documentation

100% Radiography Test Report
Third Party Inspection Report

BW Fitting Manufacturing Process

Hot forming
Mandrel

Welded Pipe Fittings Application

Wastewater treatment plants
Alcohol production
Chemical factories

Large Diameter Pipe Fittings Packaging

Bubble wraps
Packed in Wooden Boxes
As per Customers Requests

Buttweld Fittings Grades in Stock

Top Pipe Fittings Supplier in India, Supply Buttweld Fittings in Various Grades

Buy Buttweld Fittings in Seamless and Welded Form Online At Affordable Price

Elbow Price

Click Here To Find Most Updated Price Of Pipe Elbow

Get Industrial Steel Pipe Fittings in Various Types and Material For Leak Proof Connection, Refer Hsn Code

Pipe Fittings Type

Custom Size Pipe Fittings Manufacturer in India Offering Various Types at Best Price

Short Radius Return Bends

Short Radius Pipe Elbows

Long Radius Return Bends

Long Radius Pipe Elbows

Reducing Elbow

Steel Cross Fittings

Stub Ends

Pipe Nipple

Equal Tee

Unequal Tee

Pipe Caps

Concentric Reducer

Eccentric Reducer

Collar Pipe Fittings

Pipe Coupling

90 Degree Elbow

ASME B16.9 Fitting HSN Code

Product	HSN Code
ASME B16.9 Fitting	730723

Offer BW Reducer and Tee in Custom Dimensions With Polished and Pickled Finish

Seamless Fittings Size Chart

NPS (inches)	O.D.
NPS (inches)	(mm)	(inches)
3/4	26.7	1.050
1/2	21.3	0.840
12	323.9	12.750
1	33.4	1.315
1 1/2	48.3	1.900
1 1/4	42.2	1.660
2	60.3	2.375
3	88.9	3.500
2 1/2	73.0	2.875
3 1/2	101.6	4.000
5	141.3	5.563
4	114.3	4.500
8	219.1	8.625
6	168.3	6.625
10	273.1	10.750

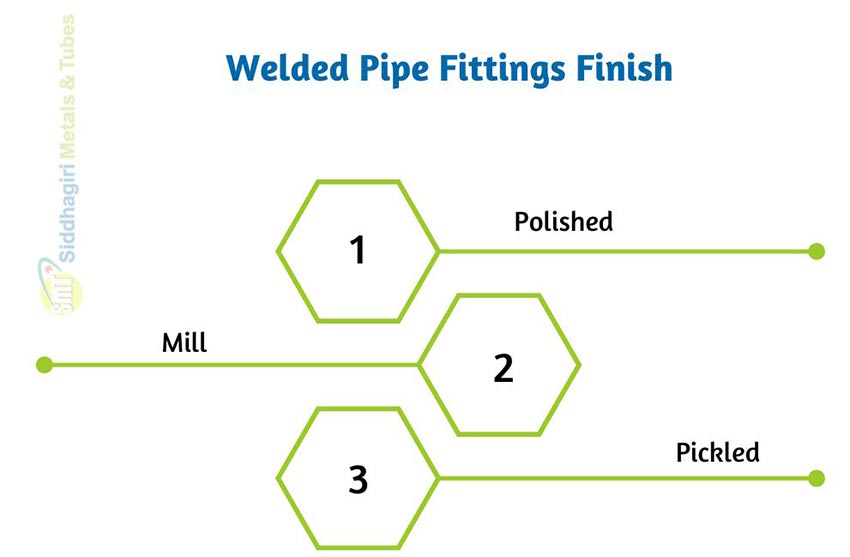

Welded Pipe Fittings Finish

Find Ex.Stock Of Japanese Origin Reducer and Cap Tested With HIC and Ultrasonic Test

Industrial Steel Pipe Fittings Testing

Fitting Inspection and Test Plan Task	TPI Inspection
Documentation review prior to release	Hold Point
Pre-shipment Inspection	Hold Point
Final visual inspection including packaging and quantity control	Hold Point
Hydrostatic test, if applicable	Hold Point
Mill test report	Review Inspection
Painting, coating, marking and color coding check	Witness point
Visual and dimensional control	Witness point
Heat treatment execution, if specified	Witness point
Metallographic examination, if applicable	Witness point
Non-destructive testing ( UT, RT, PT or MT )	Review Inspection

Non-Destructive Testing	Destructive Testing
Liquid penetrant test	Proof Test
Radiography (Only for Weld)	Impact Test
Ultrasonic	Tensile Test
Magnetic particle test	Hardness Test
Positive Material Identification	-

Manufacturing Capabilities Of Steel Fittings

Saudi Aramco and EIL Approved Pipe Fittings Manufacturer in India in Custom Sizes

Pipe Fittings Item	Production Range		Capacity In (Ton)
Pipe Fittings Item	Types Of Mold	Types Of Fabrication	Monthly	Yearly
Buttweld Tee	~ 96″	~ 140″	3,175	38,300
Buttweld Elbow	~ 96″	~ 140″	7,417	102,000
Buttweld Reducer	~ 96″	~ 140″	1,500	18,200
Buttweld Stub End	~ 12″	~ 80″	65	714
Buttweld End Cap	~100″(Type Of Seamless)	102″ ~ (Type Of Welded)	629	7,285
Outlet Fittings	~ 36″		42	534

Application Of Industrial Fittings

HVAC Systems
Chemical Processing
Power Generation
Oil and Gas Industry
Water Treatment
Pharmaceutical Industry
Plumbing
Fire Protection

Our Wide Clientele in Following Countries

UAE	Saudi Arabia	Nigeria	Oman	South Africa
Algeria	USA	Angola	Kenya	Tanzania
Zambia	Ethiopia	Gabon	Ghana	Morocco
Mozambique	New South Wales	Tunisia	Egypt	-

Seamless vs Welded Fittings

Premium Quality Manufacturer of Pipe Fittings in India With Variety of Materials Such as Stainless Steel, Nickel Alloy, Titanium, Duplex etc.

Factor	Seamless Fittings	Welded Fittings
Bore Size	Below 24 Inches	Above 24 Inches
Weld	It has No Seam Weld	It has Two or More Welds
Process	Produced By Cutting, Heating and Shaping Seamless Pipe Into Various Forms	Produced by Welding Short Part of Plate or Pipe to Form the Desired Angle

Buttweld Pipe Fittings Thickness Chart

(DN)	SCH 10S	SCH 5S	SCH 20S	SCH 60S	SCH 160	SCH 40S	SCH 80S	SCH 120S	SCH 100S	SCH 140S
10	1.65	1.2	2.0	2.8	-	2.3	3.2	-	-	-
8	1.65	1.2	2.0	2.4	-	2.2	3.0	-	-	-
15	2.1	1.65	2.5	3.2	4.7	2.8	3.7	-	-	-
25	2.8	1.65	3.0	3.9	6.4	3.4	4.5	-	-	-
20	2.1	1.65	2.5	3.4	5.5	2.9	3.9	-	-	-
32	2.8	1.65	3.0	4.5	6.4	3.6	4.9	-	-	-
50	2.8	1.65	3.5	4.9	8.7	3.9	5.5	-	-	-
40	2.8	1.65	3.0	4.5	7.1	3.7	5.1	-	-	-
65	3.0	2.1	3.5	6.0	9.5	5.2	7.0	-	-	-
90	3.0	2.1	4.0	7.0	12.7	5.7	8.1	-	-	-
80	3.0	2.1	4.0	6.6	11.1	5.5	7.6	-	-	-
100	3.0	2.1	4.0	7.1	13.5	6.0	8.6	11.1	-	-
150	3.4	2.8	5.0	9.3	18.2	7.1	11.0	14.3	-	-
125	3.4	2.8	5.0	8.1	15.9	6.6	9.5	12.7	-	-
200	3.8	2.8	6.5	10.3	23.0	8.2	12.7	18.2	15.1	20.6
300	4.6	4.0	6.5	14.3	33.3	10.3	17.4	25.4	21.4	28.6
250	4.2	3.4	6.5	12.7	28.6	9.3	15.1	21.4	18.3	25.4
350	4.8	4.0	7.9	15.1	35.7	11.1	19.0	27.8	23.8	31.8
500	5.5	4.8	7.9	20.6	50.0	15.1	26.2	38.1	32.5	44.4
400	4.8	4.2	7.9	16.7	40.5	12.7	21.4	30.9	26.2	36.5
600	6.4	5.5	-	24.6	59.5	17.5	31.0	46.0	38.9	52.4

Concentric Reducer vs Eccentric Reducer

Factor	Concentric Reducer	Eccentric Reducer
Function	Concentric Reducers Reduce the Pipe in the Center	Eccentric Reducers Reduce the Pipe to the Side
Where To Use ?	Most Suitable for Vertical Piping Systems	Its Suited for Horizontal Piping Systems
Application	HVAC Systems, Water Distribution,	Chemical Steam or Fuel Oil Systems.

Buttweld Fittings Weight Chart

NPS	Schedule 40S			Schedule 80S
NPS	90 Deg Elbows	Equal Tee	90 Deg Elbow	Equal Tee
10	0.03	0.03	0.06	0.09
8	0.03	0.06	0.04	0.07
15	0.08	0.10	0.10	0.14
25	0.15	0.29	0.22	0.38
20	0.08	0.17	0.11	0.20
32	0.26	0.59	0.40	0.68
50	0.70	1.28	0.91	1.59
40	0.40	0.86	0.51	1.02
65	1.40	2.19	1.81	3.13
90	2.83	4.08	4.00	5.44
300	59.42	62.14	79.38	83.91
80	2.20	3.31	2.97	4.45
100	4.47	5.27	6.18	7.71
200	21.54	20.91	33.11	28.12
150	10.89	10.99	16.32	13.61
250	38.56	35.38	51.71	49.90

Pipe Elbow Manufacturing Process

Pipe Tee Size Chart

NOMINAL PIPE SIZE	OUTSIDE DIAMETER	LENGTH	CENTER TO END
Equal Tee Dimensions As Per ASME B16.9
Inch.	OD	M	C
3/4	26.7	29	29
1/2	21.3	25	25
1	33.4	38	38
1 1/2	48.3	57	57
1 1/4	42.2	48	48
2	60.3	64	64
3	88.9	86	86
2 1/2	73	76	76
3 1/2	101.6	95	95
5	141.3	124	124
4	114.3	105	105
6	168.3	143	143
10	273.1	216	216
8	219.1	178	178
12	323.9	254	254
16	406.4	305	305
14	355.6	279	279
18	457.2	343	343
22	559	419	419
20	508	381	381
24	610	432	432
28	711	521	521
48	1219		889
32	813	597	597
36	914	673	673
34	864	635	635
40	1016	749	749
44	1118	762	813
42	1067	711	762
	All Dimensions are in mm

Unequal Tee
NOMINAL PIPE SIZE	OUTSIDE DIAMETER		CENTER TO END
Inch	D	P	C	M
1/2 x 1/4	21.3	13.7	25	25
1/2 x 3/8	21.3	17.1	25	25
3/4 x 1/2	26.7	21.3	29	29
1 x 3/4	33.4	26.7	38	38
3/4 x 3/8	26.7	17.1	29	29
1 x 1/2	33.4	21.3	38	38
1 1/4 x 3/4	42.2	26.7	48	48
1 1/4 x 1	42.2	33.4	48	48
1 1/4 x 1/2	42.2	21.3	48	48
6 x 3	168.3	88.9	143	124
1 1/2 x 1 1/2	48.3	42.2	57	57
6 x 2 1/2	168.3	73	143	121
8 x 5	219.1	141.3	178	162
8 x 6	219.1	168.3	178	168
8 x 4	219.1	114.3	178	156
10 x 8	273.1	219.1	216	203
24 x 12	610	323.9	432	397
8 x 3 1/2	219.1	101.6	178	152
10 x 6	273.1	168.1	216	194
10 x 4	273.1	114.3	216	184
10 x 5	273.1	141.3	216	191
12 x 10	323.9	273.1	254	241
12 x 6	323.9	168.3	254	219
12 x 8	323.9	219.1	254	229
12 x 5	323.9	141.3	254	216
14 x 10	355.6	273.1	279	257
14 x 12	355.6	323.9	279	270
14 x 8	355.6	219.1	279	248
24 x 10	610	273.1	432	384
	All Dimensions are in mm

Long Radius vs Short Radius Elbow

Factor	Long Radius Elbow	Short Radius Elbow
Radius	1.5 Times the Diameter of the Pipe	Equal to the pipe diameter
Characteristics	Smoother flow and lower pressure drop	More Frequent Direction Changes
Space	Needs More Spaace Because of the Greater Bend Radius.	Because of the Tighter Curve, More Space is Saved.

Elbow Dimensions

Size In Inch	OD	90° Elbows		Wall Thickness T		45° Elbows
Size In Inch	OD	Long R A	Short R A	ST	XS	B
1	1.315	1-1/2	1	0.133	0.179	7/8
1/2	0.840	1-1/2	—	0.109	0.147	5/8
1-1/2	1.900	2-1/4	1-1/2	0.145	0.200	1-1/8
24	24.000	36	24	0.375	0.500	15
2-1/2	2.875	3-3/4	2-1/2	0.203	0.276	1-3/4
2	2.375	3	2	0.154	0.218	1-3/8
3	3.500	4-1/2	3	0.216	0.300	2
4	4.500	6	4	0.237	0.337	2-1/2
3-1/2	4.000	5-1/4	3-1/2	0.226	0.318	2-1/4
5	5.563	7-1/2	5	0.258	0.375	3-1/8
8	8.625	12	8	0.322	0.500	5
6	6.625	9	6	0.280	0.432	3-3/4
10	10.750	15	10	0.365	0.500	6-1/4
14	14.000	21	14	0.375	0.500	8-3/4
12	12.750	18	12	0.375	0.500	7-1/2
16	16.000	24	16	0.375	0.500	10
20	20.000	30	20	0.375	0.500	12-1/2
18	18.000	27	18	0.375	0.500	11-1/4
22	22.000	33	—	0.375	0.500	13-1/2

BW Fitting Manufacturing Standards

ASME B16.9
ASME B16.28
DIN 2353
DIN 2605-1
P235GH
EN 10253
DIN 2617

Pipe Reducer Size Chart

NOMINAL PIPE SIZE	END TO END	OUTSIDE DIAMETER
Inch	H	D	P
3/4 x 3/8	38	26.7	17.1
3/4 x 1/2	38	26.7	21.3
1 x 3/4	51	33.4	26.7
1 1/4 x 1	51	42.2	33.4
1 x 1/2	51	33.4	21.3
1 1/4 x 3/4	51	42.2	26.7
1 1/2 x 1 1/2	64	48.3	42.2
1 1/4 x 1/2	51	42.2	21.3
1 1/2 x 1	64	48.3	33.4
1 1/2 x 1/2	64	48.3	21.3
1 1/2 x 3/4	64	48.3	26.7
2 x 1 1/2	76	60.3	48.2
2 x 1	76	60.3	33.4
2 x 1 1/4	76	60.3	42.2
2 x 3/4	76	60.3	26.7
2 1/2 x 1 1/2	89	73	48.3
2 1/2 x 2	89	73	60.3
2 1/2 x 1 1/4	89	73	42.2
3 x 2 1/2	89	88.9	73
2 1/2 x 1	89	73	33.4
3 x 2	89	88.9	60.3
3 x 1 1/4	89	88.9	42.2
3 x 1 1/2	89	88.9	48.3
3 1/2 x 3	102	101.6	88.9
3 1/2 x 2	102	101.6	60.3
3 1/2 x 21/2	102	101.6	73
3 1/2 x 1 1/2	102	101.6	48.3
4 x 3 1/2	102	114.3	101.6
3 1/2 x 1 1/4	102	101.6	42.2
4 x 3	102	114.3	88.9
4 x 2	102	114.3	60.3
4 x 2 1/2	102	114.3	73
4 x 1 1/2	102	114.3	48.3
5 x 3 1/2	127	141.3	101.6
5 x 4	127	141.3	114.3
5 x 3	127	141.3	88.9
5 x 2	127	141.3	60.3
5 x 2 1/2	127	141.3	73
6 x 5	140	168.3	141.3
6 x 3 1/2	140	168.3	101.6
6 x 4	140	168.3	114.3
6 x 3	140	168.3	88.9

Pipe Fittings Pressure Rating

Fittings Pressure Rating (psig)
NPS (inch)	OD (inch)	Pipe Schedule	Wall Thick. (in)	Temperature
				400 Fitting	100 Fitting	300 Fitting	200 Fitting	500 Fitting
				15500	16700	16700	16700	14400
1 1/2"				Allowable Stress (Pressure Rating)
	1.0900	80	0.0200	2138	2303	2303	2303	1986
	1.0900	40	0.0145	1512	1629	1629	1629	1404
	1.0900	160	0.0281	3120	3362	3362	3362	2899
2"	2.0375	80	0.0218	1843	1985	1985	1985	1712
	2.0375	40	0.0154	1272	1371	1371	1371	1182
	2.0375	160	0.0344	3047	3283	3283	3283	2831
3"	3.0500	80	0.0300	1712	1844	1844	1844	1590
	3.0500	40	0.0216	1208	1301	1301	1301	1122
	3.0500	160	0.0438	2587	2787	2787	2787	2403
4"	4.0500	80	0.0337	1482	1596	1596	1596	1377
	4.0500	40	0.0237	1023	1102	1102	1102	950
	4.0500	160	0.0531	2424	2611	2611	2611	2552
5"	5.0563	80	0.0375	1325	1428	1428	1428	1231
	5.0563	40	0.0258	896	965	965	965	832
	5.0563	160	0.0625	2296	2474	2474	2474	2133
6"	6.0625	80	0.0432	1280	1379	1379	1379	1189
	6.0625	40	0.0280	814	877	877	877	756
	6.0625	160	0.0719	2211	2382	2382	2382	2054
8"	8.0625	80	0.0500	1131	1218	1218	1218	1050
	8.0625	40	0.0322	716	771	771	771	665
	8.0625	160	0.0906	2133	2298	2298	2298	1982
10"	10.0750	80	0.0594	1075	1159	1159	1159	999
	10.0750	40	0.0365	649	699	699	699	603
	10.0750	160	1.0125	2124	2289	2289	2289	1974

Welded Fittings Dimensional Tolerances

OD at Bevel (D)	+ 1.06 - 0.08	1.06	1.06	+ 2.04 - 1.06
Nominal Pipe Size	1/2 to 2½	4	3 to 3½	5 to 8
Nominal Pipe Size	10 to 18	26 to 30	20 to 24	32 to 48
ID at End	3.02	+ 6.04 - 4.08	4.08	+ 6.04 - 4.08
Center to End LR (A/B)	2	2	2	2
(A/B) Center to End LR	2	3	2	5
OD at Bevel (D)	+ 4 - 3.02	+ 6.04 - 4.08	+ 6.04 - 4.08	+ 6.04 - 4.08
Wall Thickness (t)	Not less than 87.05% of Nominal WT
(A/B) Center to End 3D	3	3	3	3
(A/B) Center to End 3D	3	6	3	6
ID at End	0.08	1.06	1.06	1.06

Plain End Vs Bevel End Fitting

Factor	Plain End Fitting	Bevel End Fitting
Surface	It Has Non-Threaded or Smooth and Flat Termination	Surface Beveled or Sloping at the End
Conditon	It Use When a Non-welded Connection is Required	Used in Welding Applications
Application	Best Suited for Low Pressure Systems	Its Ideal for High Pressures and Elevated Temperatures Application

Pipe Elbow Radius chart

NPS	O.D. D	45° 3D B	45° LR B	90° LR A	90° 3D A
3/4	26.7	24	19	38	57
1/2	21.3		16	38
1	33.4	31	22	38	76
1.1/2	48.3	47	29	57	114
1.1/4	42.2	39	25	48	95
2	60.3	63	35	76	152
3	88.9	95	51	114	229
2.1/2	73	79	44	95	190
3.1/2	101.6	111	57	133	267
5	141.3	157	79	190	381
4	114.3	127	64	152	305
6	168.3	189	95	229	457
10	273	316	159	381	762
8	219.1	252	127	305	610
12	323.8	378	190	457	914
16	406.4	505	254	610	1219
14	355.6	441	222	533	1067
18	457	568	286	686	1372
22	559	694	343	838	1676
20	508	632	318	762	1524
24	610	757	381	914	1829
28	711	883	438	1067	2134
26	660	821	406	991	1981
30	762	946	470	1143	2286
34	864	1073	533	1295	2591
32	813	1010	502	1219	2438
36	914	1135	565	1372	2743
40	1016	1264	632	1524	3048
38	965	1200	600	1448	2896
42	1067	1326	660	1600	3200
46	1168	1453	727	1753	3505
44	1118	1389	695	1676	3353
48	1219	1516	759	1829	3658

Large Diameter Pipe Fittings Marking

Factor	Marking
Standard	ASME B16.9
Schedule	Sch 20
Products Name	Concentric Reducer
Manufacturer	Siddhagiri Metal
Code Of ASTM Material	ASTM A403
Material	Stainless Steel
Grade	WP316L
Heat Number (HN)	53524
Size in inch	24" X 12"

Pipe Fittings Length

Fitting	Types	(L/D)eq
Flanged/Welded (90 Deg Elbow)	LR (R/D = 6)	12
	LR (R/D = 2)	17
	Standard Radius (R/D = 1)	20
	LR (R/D = 4)	14
Threaded (90 Deg Elbow)	LR (R/D = 1.5)	16
	Standard Radius (R/D = 1)	30
Threaded (45 Deg Elbow)	LR (R/D = 1.5)
	Standard Radius (R/D = 1)	16
(90 Deg Elbow)	3 welds (30 Deg)	8
	2 welds (45 Deg)	15
	1 weld (90 Deg)	60
Tee Through-branch as an Elbow	stub-in branch
	threaded (r/D = 1.5)
	threaded (r/D = 1)	60
	flanged (r/D = 1)	20
(180 Deg Bend)	flanged (R/D = 1)
	threaded, close-return (R/D = 1)	50
	all types (R/D = 1.5)
(45 Deg Elbow)	2 welds 22.5°	6
(45 Deg Elbow)	1 weld 45°	15
Tee Run-through	flanged (r/D = 1)
	threaded (r/D = 1)	20
	stub-in branch

Our Pipe Fittings Weekly Delivered At Below Countries

Top Industrial Pipe Fittings Manufacturers in India According to Clients Demands

Export to	Continent	Port	Shipping Time in Days
Qatar	Asia	Old Doha Port	7
Egypt	Africa	Damietta	18
Netherlands	Europe	Rotterdam	30

Monthly Delivery Of Buttweld Fittings in Below Countries

Export to	Continent	Port	Shipping Time in Days
Kuwait	Asia	Shuwaikh	10
Nigeria	Africa	Calabar	30
Argentina	South America	Buenos Aires	45

Schedule 40 vs Sch 80 Pipe Fitting

Outside Diameter (OD)	Nominal Pipe Size (NPS)	Schedule 80 Wall Thickness	Maximum Pressure (PSI)	Schedule 40 Wall Thickness	Maximum Pressure (PSI)
0.540	1/4	0.119	1130	0.088	780
0.405	1/8"	0.095	1230	0.068	810
0.675	3/8	0.126	920	0.091	620
1.050	3/4	0.154	690	0.113	480
0.840	1/2	0.147	850	0.109	600
1.315	1	0.179	630	0.133	450
1.900	1 1/2	0.200	470	0.145	330
1.660	1 1/4	0.191	520	0.140	370
2.375	2	0.218	400	0.154	280
3.500	3	0.300	370	0.216	260
2.875	2 1/2	0.276	420	0.203	300
20.000	20	1.031	220	0.593	120
4.000	3 1/2	0.318	350	0.226	240
5.563	5	0.375	290	0.258	190
4.500	4	0.337	320	0.237	220
6.625	6	0.432	280	0.280	180
10.750	10	0.593	230	0.365	140
8.625	8	0.500	250	0.322	160
12.750	12	0.687	230	0.406	130
16.000	16	0.843	220	0.500	130
14.000	14	0.750	220	0.437	130
18.000	18	0.937	220	0.562	130
24.000	24	1.218	210	0.687	120
