ASTM B463

Nickel Alloy 20 Sheet Plate, Carpenter 20 Sheet Plate.

ASTM B463 Standards And Specifications

ASTM B463 specification covers the standard requirements for UNS N08020 Nickel Alloy Plate (hot-rolled or cold-rolled), sheet, and strip. Alloy 20 shall be furnished and heat treated at certain annealing condition and temperature range, stabilized annealing for UNS N08020 alloy.

ASTM B463 - Plate, Strip and Sheet

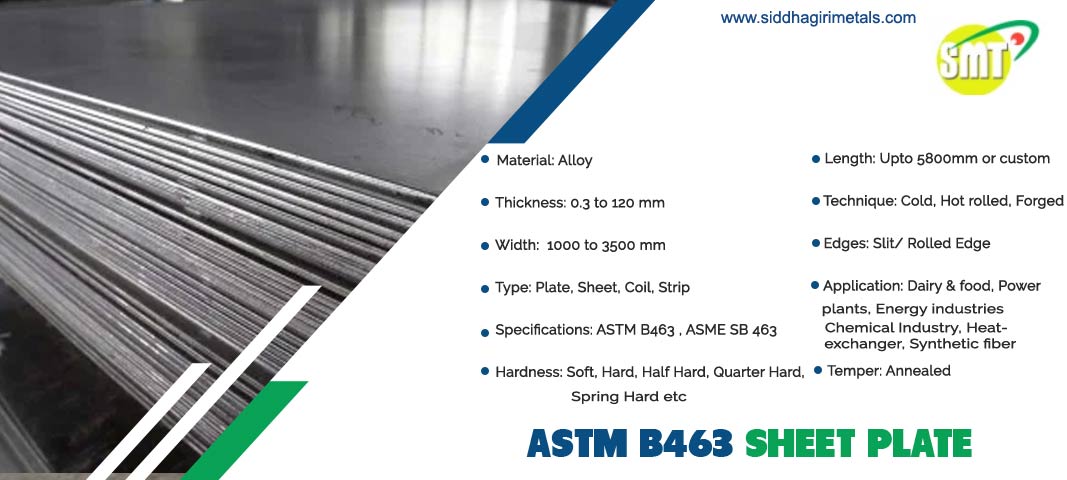

ASTM B463 Plate

ASTM B463 specifies Sheet Plate for Nickel Alloy which is also known as Alloy 20 or Carpenter 20. Alloy 20 Sheet and Plate is a niobium stabilized austentic nickel-iron-chromium alloy with additions of copper and molybdenum. Carpenter 20 sheet is a flat rolled product of rectangular cross section with uniform thickness from 0.2 up to and including 10mm, supplied in straight length, usually with sheared or sawn edges. The thickness does not exceed one tenth of the width. Alloy 20 gives excellent resistance to sulfuric and phosphoric acids. Also gives good resistance to intergranular corrosion. Carpenter 20 Alloy shall conform to the specified chemical composition requirements for carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, copper, columbium, tantalum, nitrogen, and iron.

Scope And Manufacturing

ASTM B463 specification covers the standard requirements for UNS N08020 Alloy plate (hot- or cold-rolled), sheet, and strip. The alloys shall be furnished and heat treated at certain annealing condition and temperature range: stabilized annealing for UNS N08020 alloy. The materials shall conform to the specified chemical composition requirements for carbon, manganese, phosphorus, sulfur, silicon, nickel, chromium, molybdenum, copper, columbium, tantalum, nitrogen, and iron. Tensile strength, yield strength, elongation, and Brinell or Rockwell hardness of the alloys shall also meet the specified mechanical property requirements. Alloy 20 resists pitting and chloride ion corrosion and its copper content protect it from sulfuric acid. Tensile strength, yield strength, elongation, and Brinell or Rockwell hardness of the alloys shall also meet the specified mechanical property requirements.

Siddhagiri Metals and Tubes is a supplier of Nickel Alloy 20 also known as Carpenter 20 with ASTM B463 and UNS N08020, which provides resistance to corrosion in acidic environments. Alloy 20 Sheet Plate is used for many general applications like tubing, piping, heat exchangers, tanks, pumps, valves, and other process equipment.


ASTM B463 defines Sheet Plate of Carpenter 20 Alloy, also known as Nickel Alloy 20 with UNS N08020. Siddhagiri Metals and Tubes supplies Alloy 20 Sheet and Alloy 20 Plate at modest price and fast delivery.
Other Names : ASTM B463 UNS N08020, Nickel Alloy 20 Sheet Plate, Alloy 20 Sheet Plate, Carpenter 20 Sheet Plate.
Material : Alloy 20 or Carpenter 20
Brand : Siddhagiri Metals and Tubes
Manufacturer : Siddhagiri Metals and Tubes
Rating : 3.5/5 based on 75 customer reviews

Our Inventory of ASTM B463 Material

  • ASTM B463 UNS N08020
